QuartzPlate, Discs & Optical Windows
LABQUARTZ supply Fused Quartz Plates from standard stock range or custom-made dimensions and options. Fused Quartz Plates are widely used for industry and science for its optical and mechanical properties. These properties make it resistant to chemicals, withstand high temperature and thermal shock. It has low thermal expansion and high transmission from UV 260nm to over 2 microns.
LABQUARTZ supply several grades from manufacturers around the world for low-cost commercial applications. This includes large Quartz Plates up to 1000mm square for protecting equipment to precision optical windows with multi-layer coatings. It is machined to custom design to variety of shapes and thickness.
Quartz Plates
| Quartz Plate, Thickness 1mm | |
|---|---|
| QP01001001 | 10mm x 10mm |
| QP01002501 | 10mm x 25mm |
| QP02502501 | 25mm x 25mm |
| QP02507501 | 25mm x 75mm |
| QP05005001 | 50mm x 50mm |
| QP05010001 | 50mm x 100mm |
| QP10010001 | 100mm x 100mm |
| QP15015001 | 150mm x 150mm |
| Quartz Plate, Thickness 2mm | |
|---|---|
| QP01001002 | 10mm x 10mm |
| QP01002502 | 10mm x 25mm |
| QP02502502 | 25mm x 25mm |
| QP02507502 | 25mm x 75mm |
| QP05005002 | 50mm x 50mm |
| QP05010002 | 50mm x 100mm |
| QP10010002 | 100mm x 100mm |
| QP15015002 | 150mm x 150mm |
| QP30030002 | 300mm x 300mm |
| QP40040002 | 400mm x 400mm |
| Quartz Plate, Thickness 3mm | |
|---|---|
| QP01001003 | 10mm x 10mm |
| QP01002503 | 10mm x 25mm |
| QP02502503 | 25mm x 25mm |
| QP02507503 | 25mm x 75mm |
| QP05005003 | 50mm x 50mm |
| QP05010003 | 50mm x 100mm |
| QP10010003 | 100mm x 100mm |
| QP15015003 | 150mm x 150mm |
| QP30030003 | 300mm x 300mm |
| QP40040003 | 400mm x 400mm |
| Quartz Plate, Thickness 4mm | |
|---|---|
| QP01001004 | 10mm x 10mm |
| QP01002504 | 10mm x 25mm |
| QP02502504 | 25mm x 25mm |
| QP02507504 | 25mm x 75mm |
| QP05005004 | 50mm x 50mm |
| QP05010004 | 50mm x 100mm |
| QP10010004 | 100mm x 100mm |
| QP15015004 | 150mm x 150mm |
| QP30030004 | 300mm x 300mm |
| QP40040004 | 400mm x 400mm |
| Quartz Plate, Thickness 5mm | |
|---|---|
| QP01001005 | 10mm x 10mm |
| QP01002505 | 10mm x 25mm |
| QP02502505 | 25mm x 25mm |
| QP02507505 | 25mm x 75mm |
| QP05005005 | 50mm x 50mm |
| QP05010005 | 50mm x 100mm |
| QP10010005 | 100mm x 100mm |
| QP15015005 | 150mm x 150mm |
| QP30030005 | 300mm x 300mm |
| QP40040005 | 400mm x 400mm |
- Above sizes are standard**
- We can also supply as per your size
- Length x Width x Thickness can be maintained accurately as per your specifications. Thick Quartz plates are also tailor made as per order.

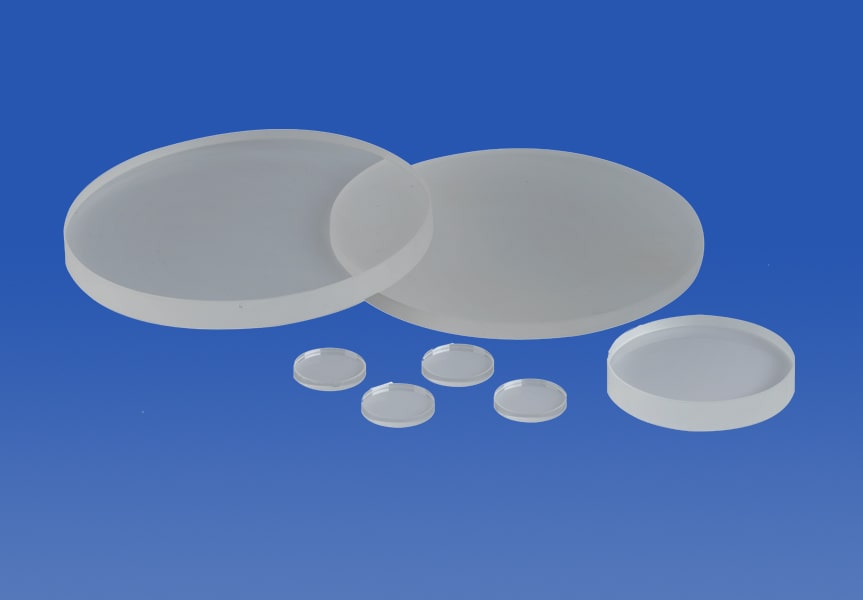

Quartz Discs
| Quartz Discs | |
|---|---|
| QD02001 | 20mm x 1mm |
| QD02002 | 20mm x 2mm |
| QD02003 | 20mm x 3mm |
| QD02004 | 20mm x 4mm |
| QD02005 | 20mm x 5mm |
| Quartz Discs | |
|---|---|
| QD02501 | 25mm x 1mm |
| QD02502 | 25mm x 2mm |
| QD02503 | 25mm x 3mm |
| QD02504 | 25mm x 4mm |
| QD02505 | 25mm x 5mm |
| Quartz Discs | |
|---|---|
| QD05001 | 50mm x 1mm |
| QD05002 | 50mm x 2mm |
| QD05003 | 50mm x 3mm |
| QD05004 | 50mm x 4mm |
| QD05005 | 50mm x 5mm |
| Quartz Discs | |
|---|---|
| QD07501 | 75mm x 1mm |
| QD07502 | 75mm x 2mm |
| QD07503 | 75mm x 3mm |
| QD07504 | 75mm x 4mm |
| QD07505 | 75mm x 5mm |
| Quartz Discs | |
|---|---|
| QD10001 | 100mm x 1mm |
| QD100002 | 100mm x 2mm |
| QD10003 | 100mm x 3mm |
| QD10004 | 100mm x 4mm |
| QD10005 | 100mm x 5mm |
- Above sizes are standard**
- We can also supply as per your size;
- Diameter x Thickness can be maintained accurately as per your specifications. Thick Quartz Discs are also tailor made as per order.
