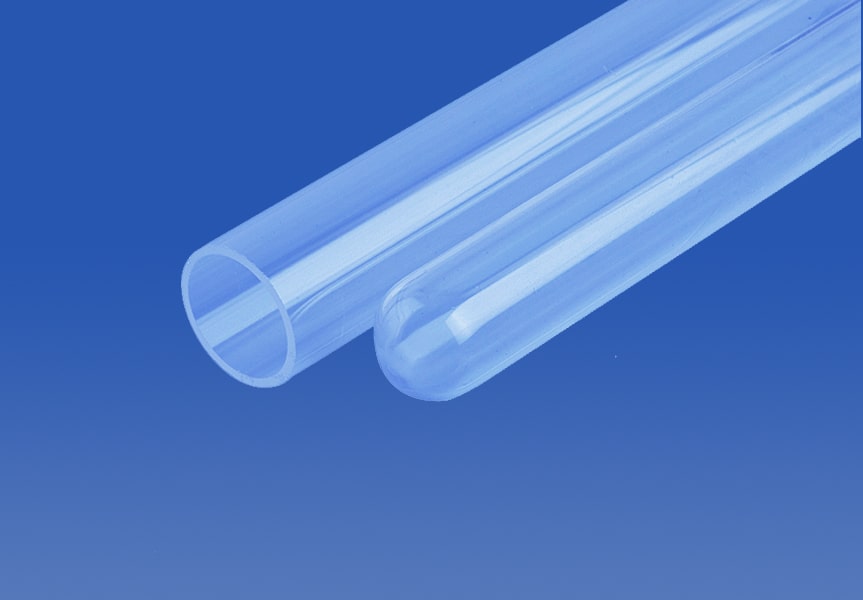

Fused Quartz & SilicaTubes and Rods

LABQUARTZ offer a wide variety of Quartz tubes for industrial and laboratory applications and our range has a wide variety of applications, from small laboratory tools to large wafer carriers or larger diameter options.


Type of Quartz Available

  • Standard – various grades of the basic material
  • High purity – clear with reduced hydroxyl levels – visual clarity – optics
  • Semiconductor grade – very high purity, excellent sag resistance, no/few defects
  • Infrared translucent – slight milky colour – infrared and semiconductor uses
  • Frosted translucent – acid etched milky coloured (used mainly for halogen lamps)
  • Opaque – white colour similar to the colour of alumina
  • Ozone free – blocks high energy wavelengths that cause ozone generation
  • Uv quartz – similar/same as ozone free – transmit uv-a and uv-b waves
  • Uv blocking – quartz doped with cerium to block uv wavelengths (allows maximum light without uv exposure)

All tube sizes can be supplied as per required length.
BOTH END OPEN CLEAR QUARTZ TUBE

Cat. Ref No. Inner Diameter ID (mm) Outer Diameter OD (mm) Length (mm)
0010031500 1 3 1500
0010031240 1 6 1240
0020041240 2 4 1240
0020061240 2 6 1240
0020081240 2 8 1240
0030051500 3 5 1500
0040061500 4 6 1500
0040081240 4 8 1240
0050071240 5 7 1240
0050081240 5 8 1240
60081240 6 8 1240
60082500 6 8 2500
60102000 6 10 2000
70091240 7 9 1240
70092500 7 9 2500
80101240 8 10 1240
80102000 8 10 2000
80122000 8 12 2000
90111240 9 11 1240
90121240 9 12 1240
100121240 10 12 1240
100121500 10 12 1500
100122200 10 12 2200
100122500 10 12 2500
100123000 10 12 3000
100131240 10 13 1240
100141240 10 14 1240
110131240 11 13 1240
110151240 11 15 1240
120151240 12 15 1240
120151500 12 15 1500
120152000 12 15 2000
120161240 12 16 1240
120162500 12 16 2500
120181240 12 18 1240
130151240 13 15 1240
130161240 13 16 1240
140161240 14 16 1240
140171240 14 17 1240
140181240 14 18 1240
150171240 15 17 1240
150181240 15 18 1240
150191240 15 19 1240
150191500 15 19 1500
150193300 15 19 3300
155202500 15.50 20 2500
160191240 16 19 1240
160201240 16 20 1240
170191240 17 19 1240
170201240 17 20 1240
180201240 18 20 1240
182051240 18 20.50 1240
182051500 18 20.50 1500
190221240 19 22 1240
190222500 19 22 2500
190231240 19 23 1240
190251240 19 25 1240
200221240 20 22.50 1240
200232000 20 23 2000
200251240 20 25 1240
200301240 20 30 1240
210241240 21 24 1240
210242000 21 24 2000
210251240 21 25 1240
220251240 22 25 1240
220252000 22 25 2000
240282000 24 28 2000
250281240 25 28 1240
250282000 25 28 2000
260301240 26 30 1240
260321240 26 32 1240
270301240 27 30 1240
270322500 27 32 2500
280321240 28 32 1240
290321240 29 32 1240
290351240 29 35 1240
300331240 30 33 1240
300351240 30 35 1240
320351240 32 35 1240
320361240 32 36 1240
340381240 34 38 1240
350381240 35 38 1240
350401240 35 40 1240
370401240 37 40 1240
380451240 38 45 1240
380452500 38 45 2500
380461000 38 46 1000
400451240 40 45 1240
400451600 40 45 1600
400501240 40 50 1240
420451240 42 45 1240
420461240 42 46 1240
440501240 44 50 1240
450481240 45 48 1240
450501240 45 50 1240
450551240 45 55 1240
500541500 50 54 1500
500551240 50 55 1240
500601240 50 60 1240
550601240 55 60 1240
550651240 55 65 800
600651240 60 65 1240
600651600 60 65 1600
600701240 60 70 1240
650701240 65 70 1240
700751240 70 75 1240
700801240 70 80 1240
750801240 75 80 1240
800851240 80 85 1240
800901100 80 90 1100
850901240 85 90 1240
900951240 90 95 1240
901001240 90 100 1240
951001240 95 100 1240
1001051240 100 105 1240
1001101500 100 110 1500
1101151500 110 115 1500
1121201240 112 120 1240
1221301500 122 130 1500
1401501240 140 150 1240
1501601240 150 160 1240

Note:
Length of the tubes may vary as per stock available **
Large Diameter tubes on request **

TRANSLUCENT SILICA TUBES

Cat. Ref No. Inner Diameter ID (mm) Outer Diameter OD (mm) Length (mm)
M0050071500 5 7 1500
M0060082500 6 8 2500
M0070091500 7 9 1500
M0080102000 8 10 2000
M0100121500 10 12 1500
M0100123000 10 12 3000
M0120151500 12 15 1500
M0120153000 12 15 3000
M0150191500 15 19 1500
M0150193300 15 19 3300
M0150194000 15 19 4000
M0190222000 19 22 2000
M0210253100 21 25 3100
M0270322500 27 32 2500
M0380451240 38 45 1240
M0380452500 38 45 2500

TRANSPARENT QUARTZ TWIN TUBES

Cat. Ref No. Inner Diameter ID (mm) Outer Diameter OD (mm) Length (mm)
TW0110233500 11 23 3500
TW0150333500 15 33 3500

White coated and gold coated quartz tubes available on requests **

ONE END CLOSED SILICA/MILKY QUARTZ

Cat. Ref No. Inner Diameter ID (mm) Outer Diameter OD (mm) Length (mm) Length (inch)
OEC038045012 38 45 305 12
OEC038045018 38 45 458 18
OEC038045024 38 45 610 24
OEC038045030 38 45 762 30
OEC038045036 38 45 915 36

Other sizes on requests**

CLEAR QUARTZ ROD

Cat. Ref No. Diameter (mm) Length (mm)
R0021240 2 1240
R0031240 3 1240
R0041240 4 1240
R0051240 5 1240
R0061240 6 1240
R0081240 8 1240
R0101240 10 1240
R0121240 12 1240
R0201240 20 1240

Other sizes on requests**
